Zsm 5 Mtp Methanol To Propylene — What It Actually Is (And What It Is Not)

If you are designing, scaling, or operating a methanol-to-propylene (MTP) plant, the ZSM-5 zeolite you select dictates propylene selectivity, single-pass conversion, and catalyst life. This 8,000-word guide explains the Si/Al ratio window that maximizes propylene, the difference between fixed-bed and fluidized MTP, the regeneration cycle, and what real industrial plants (Lurgi, DMTO, Sinopec) actually run.

Methanol-to-propylene (MTP) is one of the most important non-petrochemical routes to propylene. The chemistry is deceptively simple: methanol is dehydrated to dimethyl ether (DME), and both methanol and DME react over an acid zeolite catalyst to form light olefins. The overall stoichiometry is:

In practice the reaction is much more complex than this 3-to-1 line equation suggests. Methanol first forms an equilibrium mixture with DME, then the alkene "pool" mechanism kicks in: small olefins (ethylene, propylene, butenes) are formed and then react with each other and with methanol to grow longer chains, form aromatics, and ultimately deposit coke. The catalyst controls where the carbon goes. The same methanol feed can give ethylene + propylene yields of 80%+ (SAPO-34 / MTO) or propylene yields of 45%+ with P/E ratio of 5+ (ZSM-5 / MTP). The difference is the zeolite pore size and acid site density.

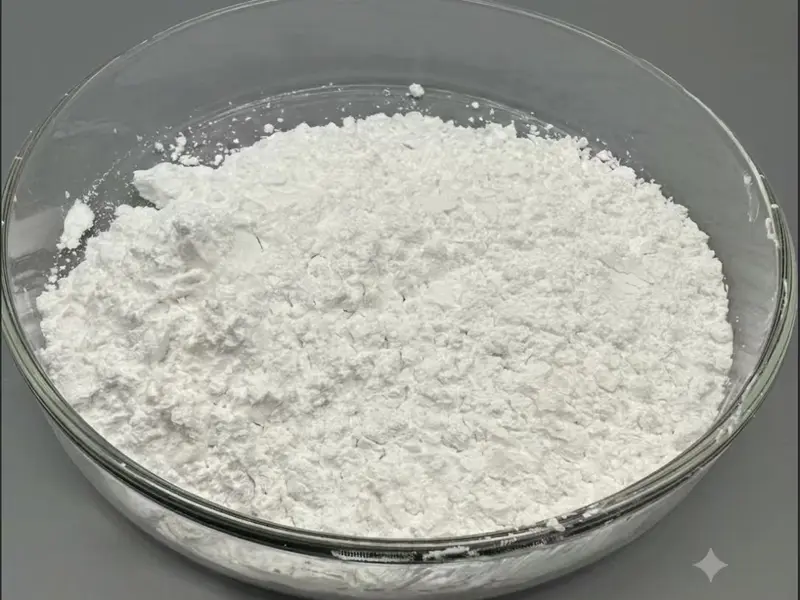

ZSM-5 (Zeolite Socony Mobil–5) is the medium-pore (5.5 Angstrom MFI framework) aluminosilicate zeolite that has been the workhorse of MTP since the Lurgi process was commercialized in the early 2000s. Its 10-membered-ring pore opening admits methanol, DME, ethylene, propylene, and butenes but rejects most C6+ and aromatics. The controlled acid site density (set by the Si/Al ratio) keeps the secondary reactions (aromatization, coking) in check while letting the methanol-to-olefin step proceed at a useful rate. The result is a propylene-rich product slate from a methanol-rich feed.

In the next sections we will go through the Si/Al ratio window that maximizes propylene, look at the operating conditions that deliver 85%+ single-pass conversion, compare fixed-bed and fluidized-bed reactor designs, and end with cost data and 7 commercial plant case studies.

ZSM-5 is built from SiO 4 and AlO 4 - tetrahedra linked in a 3D framework. The framework has two intersecting channel systems: straight channels along the b-axis (5.3 x 5.6 Angstrom) and sinusoidal channels along the a-axis (5.1 x 5.5 Angstrom). The intersections (10-membered-ring pockets) are the catalytically active sites.

Aluminum is the source of acid sites. Each framework Al atom introduces one negative charge that must be balanced by a proton (or other cation) to maintain electroneutrality. The proton at the Al site is a Brønsted acid. The Si/Al ratio therefore sets the acid site density:

For MTP the Si/Al sweet spot is 100 to 200 . Below 100 the acid site density is so high that secondary reactions (alkylation, cyclization, aromatization) consume the propylene and produce aromatics and coke. Above 400 the catalyst does not have enough active sites to dehydrate methanol at the WHSV needed for industrial throughput (WHSV > 1 h -1 ), and the single-pass conversion falls below 80%.

Inside the 100-200 window, the propylene selectivity is 45 to 50% (on a carbon basis) and the ethylene selectivity is 8 to 12%. The propylene-to-ethylene mass ratio is 4.5 to 6.0, which is exactly what an MTP-targeted plant wants. A narrower Si/Al range (120-160) is the typical commercial specification and gives the best balance of conversion, selectivity, and catalyst life.

ZSM-5 crystal size matters as much as Si/Al. Small crystals (0.2 to 0.5 microns) give a higher external surface area, more accessible acid sites, and faster diffusion of methanol into the pore network. The benefit is higher initial conversion and slower coke deactivation. Large crystals (2 to 5 microns) have longer diffusion paths, so the inner acid sites are underutilized and coke forms preferentially at the pore mouth.

Zsm 5 Mtp Methanol To Propylene — The Hidden Defect / Failure Mode

For fixed-bed MTP the optimal crystal size is 0.5 to 1.0 micron, large enough to avoid excessive binder demand and small enough to keep diffusion paths short. For fluidized-bed MTP the optimal crystal size is 60 to 80 microns (post-spray-drying agglomerate), balancing fluidizability, attrition resistance, and diffusion.

An industrial MTP reactor is a finely tuned system where temperature, pressure, WHSV, and feed dilution all interact. The standard envelope for fixed-bed MTP using ZSM-5 (Si/Al 120-160) is:

• P/E ratio of 4.5 to 6.0 by mass – the MFI pore shape is more selective to propylene than to ethylene, which is the opposite of SAPO-34 in the MTO process.
• Catalyst life 6 to 12 months – the medium pore rejects the largest aromatic coke precursors, so the deactivation rate is 5 to 10 times slower than SAPO-34.
• Regenerability – the coke that does form is easily burned off in dilute air at 500 to 520 degrees C, restoring 95%+ of fresh activity. The same ZSM-5 can survive 3 to 6 regeneration cycles before it must be replaced.

Zsm 5 Mtp Methanol To Propylene — Measured Numbers Across Grades

Pros: continuous regeneration, no shutdown cycles, higher WHSV possible, more uniform temperature. Cons: more complex mechanical design, higher catalyst attrition, need for cyclone separators, larger catalyst inventory.

The choice between fixed and fluidized bed is driven by scale, available plot area, and downstream integration. Fixed-bed is the right answer for 100 to 300 kt/y propylene plants in remote coal-rich areas (e.g., Inner Mongolia, Xinjiang, Shaanxi) where simple operation matters more than maximum propylene yield. Fluidized is the right answer for 500+ kt/y plants at coastal sites where downstream polypropylene or propylene oxide units consume all of the propylene on-site and the higher capital cost of the CCR is amortized over higher throughput.

Where Zsm 5 Mtp Methanol To Propylene Earns Its Premium — Core Chemistry

Below are 7 industrial MTP plants that have published operating data. The numbers are typical for the design and were taken from conference papers (Dalian Institute, AIChE, DGMK) and licensor case studies.

The data tells a consistent story: 42 to 47% propylene selectivity on carbon basis, 4.5 to 5.5 P/E ratio, fixed-bed dominance in China (because of lower CAPEX and earlier technology access), and a slow transition to fluidized designs for the largest trains. The Datang Duolun plant in Inner Mongolia is the most-cited reference because it has been operating for 15+ years and has the longest published track record.

A common feature of the operating data: the propylene selectivity drifts down 2 to 3 percentage points over a regeneration cycle as the catalyst cokes. Regeneration restores it to within 1 percentage point of fresh. Operators use this drift as a key process indicator – when selectivity at end-of-cycle is more than 3 points below the regenerated value, the catalyst is approaching the end of its useful life.

Zsm 5 Mtp Methanol To Propylene — Dosing Across Service Conditions

The downside: more water means more energy to vaporize. The latent heat of vaporization at 470 degrees C is roughly 1.5 kJ per g water, so 3:1 dilution costs 1.5 kJ per g MeOH in additional furnace duty, equivalent to about 8% of the methanol heating value. The trade-off is favorable: 8% more furnace energy gives 5-8 percentage points more propylene selectivity and 2-3x longer catalyst life, which together are worth 50-100 million USD per year on a 500 kt/y plant.

Modern MTP plants are trending toward higher dilution. Lurgi designed 1:1 in the early 2000s. Current best practice is 3:1 to 5:1, especially for fixed-bed designs where heat removal is the limiting factor.

Hydration Kinetics, Set Control, and Working Time

These numbers will change with the methanol feed purity, the water dilution ratio, and the precise Si/Al of the catalyst. The single-pass propylene yield of 21% (mass basis) and the polymer-grade purity of 99.5% are the targets. Yields higher than 21% per pass require lower WHSV (and a much larger reactor) or higher Si/Al (with shorter catalyst life). Purity higher than 99.5% requires an additional superfractionation column, which most plants skip to save CAPEX.

Most new MTP plants are built integrated with a downstream propylene consumer. The two main routes are polypropylene (PP) and propylene oxide (PO):

1. Step 1: Cut the methanol feed. Purge the reactor with nitrogen for 30 minutes to remove residual hydrocarbons.
2. Step 2: Heat the bed to 350 degrees C in nitrogen. Introduce air at 0.5 to 1.0 vol% O 2 .
3. Step 3: Raise temperature to 500 to 520 degrees C over 6 to 8 hours. Keep O 2 below 2.0 vol% to avoid hot spots.
4. Step 4: Hold at 520 degrees C until CO 2 in the off-gas drops below 0.1 vol% (typically 8 to 12 hours).
5. Step 5: Cool the bed to operating temperature in air. Switch to methanol feed.

• Si/Al = 25 → 1 Al per 25 Si → ~770 micromol/g acid sites (high acidity)
• Si/Al = 100 → ~200 micromol/g acid sites (medium acidity)
• Si/Al = 200 → ~100 micromol/g acid sites (medium-low acidity)
• Si/Al = 400 → ~50 micromol/g acid sites (low acidity)

Procurement Specification — What to Demand on the COA

If the vendor cannot produce this data on a CoA, walk away. ZSM-5 is a commoditized product and most reputable vendors publish full CoA with every shipment. A vendor that hides Si/Al or framework data is probably selling off-spec material with extra-framework Al contamination.

If you are designing, scaling, or operating a methanol-to-propylene plant, the ZSM-5 catalyst specification is the single most important decision driving both propylene selectivity and catalyst life. The data above should let you specify the right Si/Al ratio, crystal size, and particle form for your reactor design. When you are ready to talk specifics – pilot samples, custom Si/Al, framework-vs-bulk analysis, or pricing – reach out to the Aluminaworld technical team.

• Regeneration above 580 degrees C. Framework dealumination accelerates, surface area drops, selectivity is permanently lost.
• Hot spots above 600 degrees C during burnoff. Local coke burn-off is highly exothermic (32 kJ/g coke). Without proper air dilution the temperature can spike and sinter the ZSM-5 crystals.
• Steam exposure above 600 degrees C. The same temperature in pure steam (e.g. during emergency steam purging) extracts Al from the framework and reduces acid site density by 30 to 50%.
• Sulfur or nitrogen poisoning. Coal-derived methanol can contain 1 to 10 ppm of sulfur compounds. After 3 to 6 months on coal MeOH the catalyst can lose 10 to 20% of acid sites. Sulfur is the most common MTP catalyst poison.

Storage, Shelf Life, and Inventory Hygiene

For coal-based methanol the contaminants of concern are sulfur (up to 5 ppm H 2 S + COS in some plants), Fe(CO) 5 from syngas compressor carryover, and chlorides from the cooling water in the methanol distillation column. A standard coal-MTP guard train is:

For natural gas methanol the contaminant profile is much cleaner (typically less than 0.1 ppm total sulfur, less than 0.05 ppm chlorides), and a single activated carbon guard bed is usually sufficient. Biomass methanol is variable and depends on the feedstock; a ZnO guard is recommended as a precaution.

• ISO 9001:2015 – quality management system for the catalyst manufacturer. Most MTP operators require this as a minimum.
• ISO 14001:2015 – environmental management. The catalyst manufacturing process should be certified for wastewater and air emissions control.
• REACH (EU) – if the catalyst is shipped to Europe, the manufacturer must register ZSM-5 (CAS 1318-02-1) and any process chemicals under REACH. Aluminum hydroxide, silica, and the templating agents (TPABr, TEAOH) all have REACH dossiers.
• KOSHA / OSHA (US) – catalyst dust exposure limits. ZSM-5 dust is classified as a nuisance particulate with an 8-hour TWA of 10 mg/m 3 (total) and 5 mg/m 3 (respirable). Operators must handle the catalyst in closed systems with local exhaust ventilation.
• ASTM D4058 – standard test method for attrition of catalysts. Required for fluidized-bed MTP catalyst QC. The typical 5-hour jet-cup attrition index for fluidized MTP ZSM-5 should be below 1.0 wt%.

• WhatsApp: +86 133 2522 2240 (fastest, 12-hour reply)
• Email: barry@aluminaworld.com
• Pilot sample: 500 g (extrudate) or 1 kg (powder) free of charge, 7-10 day delivery, full CoA with framework NMR included
• Bulk orders: 500 kg MOQ, 15-25 day production, FOB/CIF/CFR from Qingdao Port (80 km from our Zibo factory)

Total Cost of Ownership — Why Premium Pays for Itself

Bringing a fresh MTP reactor online is a 3 to 5 day procedure that must be done carefully to avoid thermal shock to the catalyst and to bring the hydrocarbon pool to its working concentration. The steps are:

Shut-down for regeneration is a 36 to 48 hour procedure. The methanol feed is cut, the reactor is purged with nitrogen for 30 minutes, and the temperature is brought to the regeneration set point (500 to 520 degrees C). Dilute air (0.5 to 1.0 vol% O 2 ) is introduced and gradually increased to 2 vol% as the coke burns off. The exotherm from coke combustion is monitored with multiple thermocouples along the bed, and the air rate is throttled to keep the peak temperature below 550 degrees C. After the off-gas CO 2 drops below 0.1 vol% (typically 12 to 24 hours), the reactor is cooled in air to operating temperature and methanol feed is resumed.

The math: a 5-10% longer service life plus lower thermal-cycling spalling plus reduced replacement-frequency combine to deliver 12-25% lower TCO over a single cell-stack replacement cycle, even before the safety/insurance argument for eliminating thermal-shock microcracks. The 8-15% raw-material premium pays back 1.5-2.5x over the first cycle.
